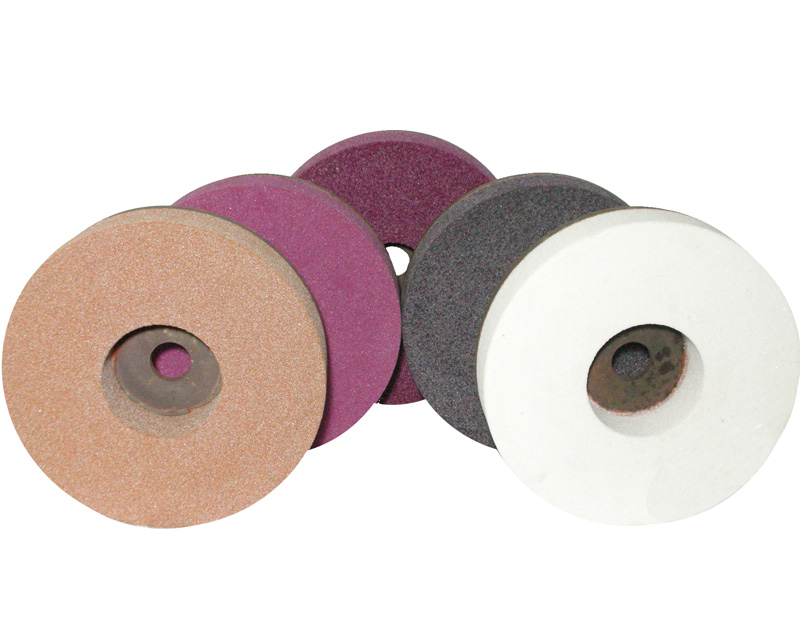

Spring Steel-Vitrified Bond Wheels

Specifically designed for spring grinding which is normally under dry grinding without any coolant. There are corresponding wheels for each different spring material or size. The specially developed bond accompanied with the high porosity structure will ensure free cutting ability, high efficiency and good heat dissipation. We also can design the steel plate according to customer’s request to suit different spring grinders.


Common Used Sizes & Types

D
T
W
Type
305
65
90
1U
380
65
140
405
65
140
560
75
205


Application Guide
∅305
∅380
≧ ∅405

Carbon Steel

0.8~2.5
(wire diameter)

38A46N8V
50A46N8V

DA46L8V

38A46N8V
50A46N8V

DA46L8V

38A30N8V
50A46N8V

DA46L8V

Carbon Steel

2.5~4.0

50A24NOWV

DA24J~LWV

50A24NOWV

DA24J~LWV

50A24NOWV

DA24J~LWV

Carbon Steel

> 4.0

50A24NOWV

DA24J~MNWV

50A24NOWV

DA24J~MNWV

50A24NOWV

DA24J~MNWV

Stainless Steel
0.8~2.5
(wire diameter)

GC60~80L8V

MgO法：WA46T3G(O2P)

GC60L8V

MgO法：WA46T3G(O2P)
GC60L8V

Stainless Steel

2.5~4.0

GC36L8V

MgO法：WA46T3G(O1P)

GC36L8V

MgO法：WA46T3G(O1P)
GC36L8V

Stainless Steel

> 4.0

GC30L8V

MgO法：WA46T3G(O1P)

GC30L8V

MgO法：WA46T3G(O1P)
GC30L8V
For grinding stainless steel springs, we have Oxychloride(MgO) Bond wheels as alternatives.

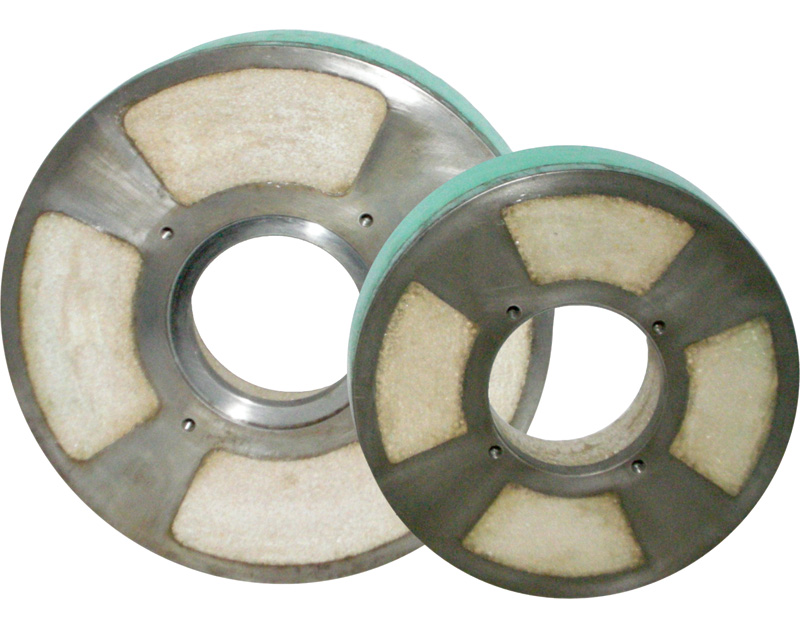

Stainless Steel-Oxychloride Bond Wheels

Especially developed for grinding spring made of stainless steel, the grinding wheels have excellent cutting ability and are good heat sink. When grinding stainless steel which is heat sensitive, it can provide effective grinding capability which will save considerable grinding cost and also obtain good quality for workpiece.


Common Used Sizes & Type

D
T
W
Type
305
40   65
90
2U
380
65
140


Application Guide
∅305
∅380

Stainless Steel
0.8 ~ 2.5
(wire diameter)

WA46T3G (O2P)

WA46T3G (O2P)

Stainless Steel

2.5 ~ 4.0

WA46T3G (O1P)

WA46T3G (O1P)

Stainless Steel

> 4.0

WA46T3G (O1P)

WA46T3G (O1P)
